Vol. 9 No. 3, April 2004
Many languages are in serious danger of being lost and if nothing is done to prevent it, half of the world's approximately 6,500 languages will disappear in the next 100 years. Language data are central to the research of a large social science community, including linguists, anthropologists, archeologists, historians, sociologists, and political scientists interested in the culture of indigenous people. The death of a language entails the loss of a community's traditional culture, for the language is a unique vehicle for its traditions and culture. In this paper, we describe the effort undertaken at Wayne State University to preserve endangered languages using the state-of-the-art information technologies. We discuss the issues involved in such an effort, and present the architecture of a distributed digital library which will contain various data of endangered languages in the forms of text, image, video and audio files and include advanced tools for intelligent cataloguing, indexing, searching and browsing information on languages and language analysis. Various Semantic Web technologies such as XML, OLAC, and ontologies are used so that the digital library is developed as a useful linguistic resource on the Semantic Web.
Recently, there is an increasing awareness of the fact that many languages are in serious danger of being lost. As Professor Peter Austin in the School of Oriental and African Studies at the University of London commented in an interview with the BBC World News, half of the world's approximately 6,500 languages will disappear in the next 100 years unless we act immediately. In this interview, Professor Steven Bird of Melbourne University said, "We are sitting between the onset of the digital era and the mass extinction of the world's languages. The window of opportunity is small and shutting fast".
Language data are central to the interests of a large social science research community, including linguists, anthropologists, archeologists, historians, sociologists, and political scientists interested in the culture of indigenous people. When a language disappears there are two major effects. First, there is the loss of the valuable data of the cultural system that produced the language. The death of a language usually entails the loss of a community's traditional poetry, songs, images, stories, proverbs, laments, and religious rites. Secondly, any language loss represents a serious scientific loss: studies of linguistic diversity and cross-linguistic comparisons drive much of linguistic theory. In addition, linguistic material provides valuable information about population movements, contacts, and genetic relationships. When a language becomes highly endangered, efforts to preserve the existing documentation about the language become critically important, not only to that community, but also to academic linguistics and sister sciences such as anthropology, archaeology, history, and ethnobiology.
Digital technologies offer the best promise for the preservation of endangered languages data, for they give permanent storage, wide dissemination, and flexible access. However, to realize that promise, it is important to digitize the material in a way that conforms to the best practice within the language technology community, for otherwise it will not be generally accessible, or machine-interpretable. Because of the urgent need to preserve irreplaceable linguistic material, many linguists and librarians have embarked on the wholesale creation of digital recordings, database records, and Internet displays of texts and lexicons. These reside in disparate and often unrelated sites on the Internet. But the resulting multiplicity of standards and formats has produced a situation in which much of this digitized information is less accessible and less portable than the printed material it was intended to replace. Also, another major problem with searching a distributed set of archives is the incompatibility of markup of data, and the incompatibility of the queries each system requires. One of the most obvious ways that this problem manifests itself is in multilingual searches: for example, a query might require the use of English, or French, or Spanish terms. One simple approach is to limit query terms to English, and then to search translated terms in collections of other languages based on dictionaries which translate from English to other languages. However, this is not a semantic approach, since what we require is not just mapping between words, but between senses of a word. To take an example, the word morphology has many meanings in English, most of which are irrelevant to linguistic data. Its translation in French, morphologie, has a somewhat different set of senses. How do we know whether a use of morphologie is relevant to our search? The solution is to use an ontology which precisely defines meaning in an area of knowledge, and then to map the terminology of other languages to that ontology.
In this paper, we describe the effort undertaken at Wayne State University to preserve endangered languages using the state-of-the-art information technologies. In particular, we discuss the issues involved in such an effort, and present the architecture of a distributed digital library containing various data of endangered languages in the forms of text, image, video and audio, and include advanced tools for intelligent cataloguing, indexing, searching and browsing information on languages and language analysis. We use various Semantic Web technologies such as XML, OLAC, and ontologies so that our digital library is developed as a useful linguistic resource on the Semantic Web. The initial 2-year stage of this multidisciplinary project has been funded by the University Research Enhancement Program at Wayne State University. We expect to secure additional funding from NSF and other agencies to complete the project.
According to Krauss (Krauss, 1992), around half of the estimated 6,500 languages on earth are spoken only by adults. This is a clear sign of the death of a language: when a minority culture no longer passes on its language to its children, the language will usually survive for only fifty or sixty years at the most.
The decline of linguistic diversity exists on a global scale: in Europe Basque is receding in Spain and France, and Sami in Scandinavia, to name but two examples. The situation is even more dire in the rest of the world: majority languages such as English, Spanish, Chinese, Russian and Arabic are spreading at the expense of a myriad of smaller languages in the Americas, Africa, Australia, and Southeast Asia (Robins & Uhlenbeck, 1991; Brenzinger, 1992; Schmidt, 1990).
The LINGUIST List, whose data derive in large part from the Ethnologue, the most comprehensive database of current languages in existence, lists 7420 languages in its database, of which 543 are already extinct, and a further 432 which have so few speakers left that they will no longer be spoken within 20 years. Dixon (1997) gives us some idea about why languages have come to be endangered and why such a loss is a serious problem. The rate of extinction is clearly accelerating: with the spread of modern communications, the major world languages are becoming more and more essential and pervasive as vehicles for communication.
For a comprehensive list of languages in danger and a concise summary of the worldwide language endangerment situation, the reader is referred to Wurm's "Atlas of the World's Languages in Danger of Disappearing" (2001) sponsored by the UNESCO/Japan Trust Fund for the Preservation of the Intangible Cultural Heritage.
The existence of facts like these has recently stimulated a debate on whether endangered languages are worthy to be preserved at all: Sutherland (2003) examined the threat to the world's 6,500 languages and concluded: "The threats to birds and mammals are well known, but it turns out that languages are far more threatened." Against this, Prof. David Berreby argued in the science section of the May 27, 2003 edition of the New York Times (Berreby, 2003) that, the extinction of animals is different from that of endangered languages: the former, once gone, are gone forever; the later can be revived later when necessary. He argued that,
It would be a terrible thing to run out of languages. But there is no danger of that, because the reserve of language, unlike the gas tank, is refueled every day, as ordinary people engage in the creative and ingenious act of talking. Old words, constructions and pronunciations drop away, new ones are taken up, and, relentlessly, the language changes
Prof. Berreby is of course perfectly correct in the assertion that languages recreate themselves. But he forgets two important facts: languages created anew do not also recreate the cultural material that the lost languages conveyed: once lost cultural material is lost forever. And since these new languages will be based upon languages already in existence, they do not show the range of linguistic behaviour which the lost languages displayed. They offer little help, then, in the development of more encompassing linguistic theories, and thus little help in the development of a more comprehensive understanding of the way the human mind can communicate.
Efforts of preserving endangered languages have thus been thus proceeding. To promote the international recognition of the importance of preserving the world's linguistic diversity, a symposium on Language Loss & Public Policy was held at the University of New Mexico at Albuquerque in June of 1995, which resulted in the establishment of an organization named Terralingua. Many other organizations, funding foundations, and projects have initiated projects and initiatives world-wide since then to promote, support, and conduct the preservation of endangered languages, including:
A complete list is beyond the scope of this paper. The reader is referred to the Yahoo! Directory on Endangered Languages for similar activities.
This dire situation has stimulated extensive linguistic research on endangered languages and how to preserve them. Bobaljik (1996), Grenoble (1998), Robins (1991), and Matsumura (1998) are collections of excellent papers presenting case studies, strategies, techniques, tools, and methods of preserving endangered languages. A detailed review of the literature on endangered languages is beyond the scope of this paper. The reader is referred to the Bibliography of Language Revitalization and Endangered Languages.
In the past few years, there has been a significant increase in language documentation projects, and also in attempts to preserve language documentation using digital technologies. But as mentioned above, this attempt at digital preservation and data sharing is threatened by the multiplicity of incompatible technologies currently in use. The lack of common standards and formats, as well as the lack of supporting software, currently impedes long-term storage, retrieval, display, and even comparative analysis of language data. To address this problem, the E-MELD project was proposed by Anthony Aristar, Helen Aristar-Dry and the LINGUIST list to the NSF in 2000, and funded the following year. The goal of the E-MELD project is to define the infrastructure of a distributed archive, and has focused on the following three main tasks:
The digital library system we present here generalizes the work of E-MELD, and focuses on a system for the intelligent searching of a distributed endangered language archive across the Internet, with particular emphasis on audio and visual material. The system integrates various data sources and their existing ontologies for the existing endangered languages. E-MELD is only one such data source. Web data integration systems are designed for the purpose of answering user queries by integrating the most accurate and relevant information from a variety of Web data sources. We are currently eveloping a Web data integration system to retrieve data from Web sources and store the necessary data, metadata and language annotations into a virtual data warehouse. We are developing an XML-based global schema and its associated tools for storing, intelligent browsing and querying of endangered language data. The system is not simply another gateway or portal, but an integrated, intelligent, tool-rich research environment, incorporating various multilingual and visual domain-dependent ontologies. In summary, the objectives of this research are:
Web data integration systems are designed for the purpose of answering user queries by integrating the most accurate and relevant information from a variety of Web sources. One approach to building a Web data integration system is to retrieve data from Web sources and load it into a data warehouse. This data warehousing approach is implemented by two well-known Web data integration systems: Information Manifold (Levy etc, 1996), a project of AT&T Laboratories, and Tsimmis (Garcia-Molina, 1997), a project at Stanford University. In this kind of architecture every data source is wrapped by software that maps the source-specific language and model to a generic data model shared by all sources. Mediators extract information from the shared model and make it available to data requestors. The advantage of this approach is the predictable performance at the time of a query; the drawback is that it requires warehouse data be updated every time the source data are changed.
Another approach to building a Web data integration system is the virtual approach where the data remains in the Web sources and queries are decomposed at run-time into queries on the sources (Florescu, 1998), which has been implemented in the Florid system. The virtual approach has become prevalent in Web data integration systems because it provides a scalable and flexible environment and delivers up-to-date information. At the same time, this approach requires innovative data source selection and query optimization techniques.
The Web data integration system has the following components:
Figure 1 depicts the architecture of the digital library. In this architecture every data source has an associated 'wrapper' that provides access to the underlying data by using source-specific techniques.
The role of a 'mediator' is to accept a user query, initiate requests to wrappers, accept and integrate returned result sets, and make them available to a user. The functional architecture of a mediator as presented in Florescu (1998) may include a query rewriter to translate a user query into queries against data sources; a logical plan generator to produce alternative query execution plans; a query optimizer to select the most efficient execution plan; an execution engine to initiate data extraction and receive query results. Meta-data and annotations related to endangered languages are stored in the digital library. The user is then querying or browsing the information in the digital library.
The data repository for metadata and annotations needs to be in formats that will still be readable far into the future. It is generally accepted that the most long-lasting archival format for data is a plain text file with content-oriented markup in an open standard. Currently, the recommended markup standard is XML (Extensible Markup Language), accompanied by a DTD (Document Type Definition, which is a mechanism for specifying document structure, (or, better, a schema) making the markup interpretable by various software programs. We are currently developing an XML-database for the storage of linguistic data of various forms (text, image, video, audio, etc) in multilingual representations (English, French, Chinese, etc). We are designing XML schemas for various linguistic data sources, and use ontological knowledge about their cultural domains in order to integrate them into a Semantic Web for language engineering. Our database approach of mapping semi-structured linguistic data into structured storage will greatly facilitate the intelligent navigation and searching of these linguistic data.
In a context as vast and rapidly expanding as the Internet, data are only valuable if they are findable, and if their relevance is interpretable through computational means. From a user's point of view, two methods of accessing underlying language data are desirable:
While the LINGUIST List focuses on the development of the browsing access method, and only provides very limited searching functionalities (queries are based on only a couple of attributes and are submitted to a single, centralized database), one of the main goals is to develop an advanced technique to fully support intelligent querying and retrieval of various language data. To develop such a technique, we focus on the following issues:
Accurate display of linguistic documentation is currently inhibited by a number of practices. As is well known by anyone who has tried to bring up an Excel file in Word Perfect, the use of proprietary software often restricts display of the material to those who own a specific program. However, even the use of open formats (e.g., HTML), which are readable by multiple software programs, does not necessarily end display problems, since many such problems are linked to character representation. As is well known by anyone who has ever confronted a browser screen full of tiny squares instead of character glyphs, accurate display of non-Latin characters cannot yet be taken for granted. Also one language might have several encoding mechanisms: for example, popular encoding mechanisms for Chinese characters include GB2312, BIG5, HZ, etc. While the digital library probably would only store linguistic data in one encoding, Web services are needed to convert linguistic data from one encoding to another on the fly. As more and more devices including mobile devices such as PDAs are connected to the Internet, a content adaptation technique is needed to transform the linguistic data from the server to client devices with different display capabilities.
Efficient data analysis and comparison also require a level of standardization in content markup schemes. Currently, data from different sources may use different structural tags for the same concept (e.g., possessive vs. genitive) or a single tag to reference different concepts (e.g., "absolutive" in a Uto-Aztecan language description does not mean the same thing as "absolutive" in the description of an ergative1 language). And without compatible markup, no two bodies of data are comparable. Linguistic similarities and differences will not be discoverable by computational means, since no search-engine can be expected to know that differently named entities are equivalent. The solution to this problem is again ontology-based searching. An ontology represents what is essentially a standardized form of the interrelated semantics of an area of knowledge. Thus an ontology can function essentially as an interlingua, to mediate between the terms that a particular linguist or archive might use, and the terms found in other archives, allowing different markups to be related intelligently. The ontology allows the search to know that the two "absolutives" are different, but that "possessive" in one data-set is the same as "genitive" in another. Ontologies can thus be used as integration tools to support unified querying and retrieval from many linguistic data sources simultaneously. Developing an ontology for a discipline is in itself a huge research problem. Fortunately, we are in a position to use the linguistic GOLD ontology being developed by the Wayne State-based E-MELD project at the University of Arizona for this purpose.
We are currently developing an annotation management system to support domain experts across the world to annotate various data related to endangered languages. This will facilitate advanced queries and retrieval. By means of annotation the semantics of non-text data such as images, audios, videos can be enriched by the knowledge of the domain experts when they describe the contents of these data in metadata. In addition, the resulting metadata can be structured and organized using database technologies to facilitate querying and integration.
As the data related to endangered languages are multimedia and multilingual in nature, and annotation will be performed from different geographical locations, our annotation management system should satisfy the following requirements:
To meet these requirements and address the relevant challenges, the annotation management system should address the following issues:

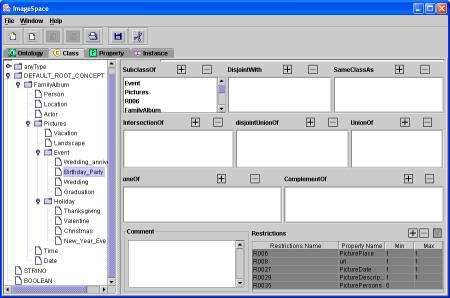

We have developed an ontology creation and annotation tool, called ImageSpace to create ontologies and perform ontology-based annotation of text and images. Figure 3 shows a snapshot of creating an ontology using ImageSpace. The four tabs, labeled by Ontology, Class, Property, and Instance, facilitate the specification of these components and their relationships in a graphical fashion. For example, in Figure 3, the Class tab is enabled, the left frame displays the class hierarchy, and the right frame shows the relationships of this class with other classes (including restriction classes). With this interface, one can easily insert, delete, and update a class. In addition, using the right frame, one can specify the relationships of this class with other classes. At the right-bottom corner of the right frame, is a panel that corresponds to property restrictions, where a user can specify both value constraints and cardinality constraints. Note that those shaded property restrictions are automatically inherited from their parent classes unless they are overridden. Also note that, since a class might have multiple parents, other parent classes are shown in the SubClassOf field.

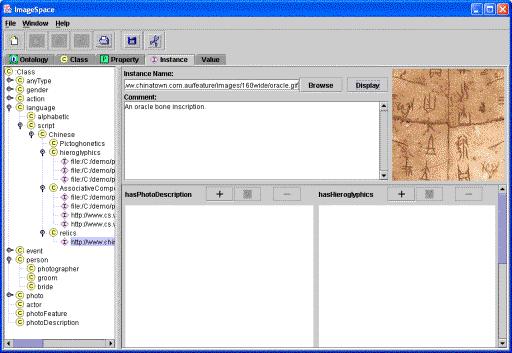

Figure 4 displays a snapshot of annotating an oracle bone inscription using ImageSpace. The left frame shows the class hierarchy and instances (shown by I-icons) associated with the classes to which they belong. The interface on the right is ontology-driven; that is, for different ontologies and different classes, the interface will be generated dynamically based on the properties and cardinality constraints specified in the ontology.
A detailed description of ImageSpace is beyond the scope of this paper. Interested readers are referred to Huang (2004) for the description of how to create an image ontology and annotate images based on the created ontology using ImageSpace, and to Lu (2004) for the description of our experiences of annotating linguistic data with ImageSpace. Detailed design and implementation issues as well as other features of ImageSpace are available in Huang's master's thesis (2003).
We will carry out our research project in three years. In the following, we sketch the methodologies and evaluations for each year.
Year 1. In the first year, we will focus on identifying endangered language data sources and developing wrappers for each data source. In particular, we will:
Year 2. In the second year, we will focus on query design and the development of the Web integration system, as well as the development of the annotation management system. In particular, we will:
Year 3. In the third year, we will focus on the development of linguistic analysis and cross-linguistic comparison, language data display, and the testing and evaluation of the whole system. In particular, we will:
In this paper, we have described the effort undertaken at Wayne State University to preserve endangered languages using the state-of-the-art information technologies. In particular, we discuss the issues involved in such an effort, and present architecture of a distributed digital library for endangered languages which will contain various data of endangered languages in the forms of text, image, video, audio and include advanced tools for intelligent cataloguing, indexing, searching and browsing information on languages and language analysis. We use various Semantic Web technologies such as XML, OLAC, and ontologies so that our digital library becomes a useful linguistic resource on the Semantic Web.
Lack of training has been a primary factor impeding progress in the documentation of endangered languages in general. Therefore, it is important to interest young linguists in the techniques of language documentation and train them in fieldwork techniques. Currently, we are in the process of developing a language engineering programme which will provide basic training in the fundamentals of language engineering, including elementary linguistic methodology and the basics of natural language database manipulation and querying. We expect that our digital library for language engineering will become an important tool for this programme.
1. Ergative: a term used of a grammatical case marking the subject of a transitive verb in languages such as Eskimo, Basque, and some others. (Oxford English Dictionary).
