Vol. 12 No. 1, October 2006
This paper reports on preliminary research in an ongoing study of how, and how effectively, members of the general public search for information on the Web. The focus is query transformation patterns that occur in a search session. Thus, we hope to gain insights into essential generic strategies that may result in more, and less, effective Web-searching. Our long-term aim is to build an evidence-based model of effective searching, based on statistical and qualitative data, to inform the design of training and of intelligent adaptive search interfaces. In this initial phase, transaction logs from the Excite search engine dating from 2001 have been used to develop methods for analysing query transformations. Although not current, the Excite logs represent a typical record of queries from the time with many of the syntactic changes that will be of interest to us. Also, they are well known and extensively studied. The activity logs thus present us with core data for development of analytical methods that can be used later in conjunction with qualitative results in our own empirical studies with volunteer members of the general public. This paper describes the research method that we have developed through our study of these logs, and also presents analyses of the logs which provide new insights into Web searching by the general public.
A significant body of research into Web searching exists (for a review, see: Spink & Jansen 2004) and potential value is demonstrated by Jansen and McNeese (2005), whose empirically study has identified predictable search states when searchers are more likely to be receptive to assistance, which can be informed by knowledge of effective Web searching strategies. Also, such interventions can be supported by search-pattern classifier algorithms, such as those of Ozmutlu and Cavdur (2005).
Most studies have been quantitative, using transaction logs (e.g., Jansen et al. 1998; 2000; Huberman et al. 1998) or on-line surveys (e.g., Broder 2002; Spink et al. 1999). Some have investigated searching by the general public, including query reformulations (e.g., Spink et al. 2000 and 2001). From these, various characteristics have emerged. For example, transaction log analyses show that most users (51.8% in 1998, 51.2% in 2002 - Jansen et al. 2005) only enter one or two search terms; and most only look at one screen of results (85.2% in 1998, 72.8% in 2002; Jansen et al. 2005). Changes are occurring rapidly as search engines improve and searchers become more adept at using them (Jansen et al. 2005). In Europe, a study has demonstrated a decline in query length and a reduction in session time between 2001 and 2002 (Jansen and Spink 2005). Indeed, analyses suggest that little is gained by increasing the complexity of a search (Jansen 2000). More recently an analysis of search engine transaction logs over time and geographical region (Jansen and Spink 2006) confirmed the predominance of simple queries, but also identified geographical and search engine specific differences. Specifically, use of query operators differs across search engines and greater searching competence was found to exist in the USA compared with Europe. In general, their study found that searchers now tend to reformulate queries rather than examining results pages beyond the first page, and consequently searchers view fewer results pages. Also, the nature of search topics is changing in balance (from entertainment more to information and commerce).
Such studies, with exceptions (e.g. Nicholas et al., 2003), used anonymous Web search engine logs, which provide no data relating to relevance, personal characteristics of searchers, or qualitative insights into searchers' thinking behind their observable search behaviour. Consequently, only limited explanation is provided for the patterns of Web information seeking identified. Nevertheless, studies of this kind have sometimes been able to infer useful information about user behaviour (Chau et al. 2005) with consequent recommendations for search engine and Website design. Several recent studies have focused on automated topic identification and an examination of diurnal changes as a means of optimising search engine response (Ozmutlu 2006; Ozmutlu et al. 2004; Ozmutlu and Cavdur 2005).
A potentially powerful but largely unexploited tool in Web searching research is the use of abstract models to represent semantics of the search process. Two approaches, often combined, are synthesis of statistics-based models and of semantically enriched data models. Examples of the former include Bayesian networks to model successive search queries (Lau and Horvitz 1999) and Markov models to predict Web users' next moves (Zukerman et al. 1999). In contrast, Wildemuth (2004) uses zero-order state transition matrices and maximal repeating patterns (MRP) (Siochi and Ehrich 1991) to characterise search tactics. An example of the data modelling approach is the use of graphs to represent sequences of search actions and interactions, finding both combined and individual effects on search strategies and effectiveness of domain and Web experience (Hölscher and Strube 2000). They used graphical representations to summarise the action sequences of the participants in their study, and as one of a number of means of comparing the behaviour of experts and novices.
Studies to date have provided only limited qualitative understanding of Web searching behaviour, with very little focus on the general public. We have noted various approaches to modelling Web searching behaviour, but feel that the potential of data modelling approaches for developing semantically rich models is under-exploited.
The preliminary phase of our research into Web searching reported here is part of a larger study. The study aims to extend previous research by seeking greater understanding of real Web-based searching, and of searching by the general public. Specifically, we want to examine searching in natural contexts in relation to the searchers' genuine information needs, as opposed to experimental situations and researcher-assigned search topics. Our research is designed to employs a balance of quantitative and qualitative approaches to develop semantically rich models of the ways in which searchers transform their queries during a session.
In the initial phase reported here we have addressed the research questions: to what extent can different types of query transformation be identified by the automatic analysis of search engine logs and can the resulting transformations be used to identify any significant patterns or relationships relating to Web use? This initial work involved the analysis of an Excite search engine transaction log dating from 2001 containing 1,025,910 queries (previously studied by Spink et al. 2001). For operational reasons our results were limited to those 1,025,838 queries with fewer than 256 characters. These logs presented us with core data for the development of analytical methods that can be used later in conjunction with qualitative data collected through our own experiments with volunteer members of the general public.
Space limits allow only an overview the method of research used in this initial phase. Our method of research has been to inductively derive a taxonomy of syntactic query transformations. We have done this through the development and elaboration of a program to analyse and encode the Excite logs. The program transforms logs into a string of codes designed to be converted to graphical form in which nodes and edges respectively represent queries and query transformations. Pseudo-code for the heart of the program is presented in the Appendix. The advantages of this representation are that, it captures the dynamic nature of Web searching by providing a history of the changes the searcher makes, there is potential for elaborating the model to represent semantic explanations as well as syntactic query transformations, and the similarities between this representation and that of chemical compounds should allow us to exploit data mining techniques developed for chemoinformatics research to identify characteristic search patterns.
Our main assumption is that the target query can be treated as a modification of the most similar preceding query rather than any other in the list. If none of the earlier queries bears sufficient similarity to the current one then we have a criterion for defining an entirely new query that is syntactically distinct from the rest of the session. Modification could be by addition or subtraction of words, by a change in word order, a change in spelling, word endings or prefixes etc. Accordingly, the transformation algorithm scans those sequences of queries within the log that form a session; that is, queries submitted by a single user. For each query within a session, the most similar previous query in that session is identified, and the syntactical transformation from that previous query to the current query is analysed and coded. Thus, the key aspects of the analysis algorithm are the query similarity test and the method of analysing and encoding query transformations. Both are being developed inductively and are thus evolving to derive models of searching within a session that appear better to capture the semantics of a Web search. Initially, in the absence of qualitative data, we are seeking to identify only syntactical query similarities and transformations.
Our approach to query comparison is based on the use of similarity methods (Willett et al. 1998) to compare individual words and whole queries. Query comparison is based on word content using a routine that effectively recognises words with modified spellings that have essentially the same meaning as similar. This method allows users also to specify the sensitivity of query comparison by setting a word similarity threshold (WST) and query modification threshold (QMT). These, respectively, are based on the similarity of words in the queries being compared and the amount of modification needed to transform one into the other. Values of WST = 0.4 and QMT = 0.3 were found to give an optimum balance between discrimination and acceptance when compared with human decisions for queries, based on a sample of results from the logs. Although these values appear to be about the most favourable the choice is largely a case of judgment.
The query transformation classification developed describes the key multiple alterations that may occur in a single query transformation. Transformations frequently occur in combination with a Boolean operator or with the addition of quotation marks that transform a string of words into a phrase. In addition, we found it useful to introduce a code to register any long time delays between queries as this gives some indication of a user's working practice. Accordingly, our coding system for query transformation involves up to four symbols. A primary code denotes the main transformation type and this may be supplemented by up to three supplementary codes. Two of these prefix the primary code and indicate changes involving a Boolean term and those involving quotation mark (") changes. A third symbol, the delay code "_", may be added to the end of the query transform description if there has been no activity for a prescribed time. In this work we have chosen this to be sixty minutes. The primary and supplementary codes used to denote these changes are listed in the Appendix. Using these, the transformation between the queries
- Query 1: isic conference
- Query 2: "isic conference" +Sydney
would be represented as BQC(1), since the second query is a conjoint modification of the first and also includes quotation marks and a Boolean symbol. The number in parenthesis indicates the most similar previously occurring query in the train, which in this case is trivially 1. If the logs showed that there was no further activity for at least one hour, a delay term would be added and the code would become BQC(1)_.
The routines outlined in the Appendix apply a series of tests to the pairs of queries found to be most similar in a session and code each transformation accordingly. Previous coding schemes have been limited to sequential transformations and have used a smaller set, e.g. Spink et al. (2000). The categories can also be related to those discussed by He et al. (2002). Their notion of generalisation is equivalent to a disjoint modification and specialisation is equivalent to a conjoint modification in our coding system. However, the inclusion of phrase marks and Boolean terms also specialise a search and were not considered by these authors. These authors also discuss reformulation" which is essentially split into four categories, S, s, W, and w, in our scheme.

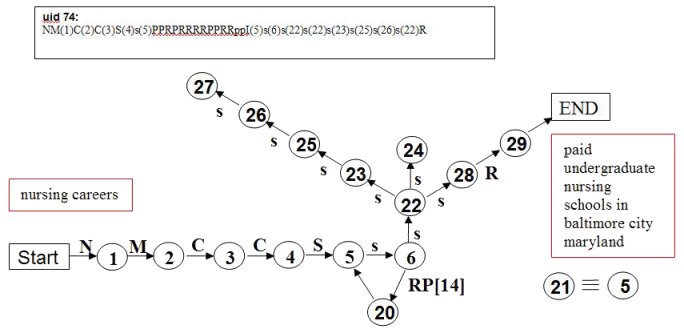

An example is given in Figure 1, in which we represent a query session (by user 74) concerning nurse training courses. A table of the queries involved is given in Table 1.
|3||nurse training programs in baltimore|
|4||nurse training programs in baltimore city|
|5||undergraduate nurse training programs in baltimore city, maryland|
|6-20||paid undergraduate nurse training programs in baltimore city maryland|
|21||undergraduate nurse training programs in baltimore city, maryland|
|22||nursing schools in baltimore in baltimore city maryland|
|23||undergraduate nursing schools in baltimore city maryland|
|24||free nursing schools in baltimore city maryland|
|25||free undergraduate schools in baltimore city maryland|
|26||free undergraduate nursind schools in baltimore city maryland|
|27||free undergraduate nursing schools in baltimore city maryland|
|28||paid undergraduate nursing schools in baltimore city maryland|
|29||paid undergraduate nursing schools in baltimore city maryland|
Figure 1 shows the initial and final queries, together with the string of intermediate query transformation types. The transformations are represented both as a string of codes and also as a graph. All of the codes used are defined in Tables 1 and 2. Note that the same query can occur many times within the one session (in the example, the 5th and 21st iterations of the query are equivalent) and undergo different transformation. Consequently, the graph can be cyclic, as a transformation may produce a query used earlier in the session.
The string and graphical representations illustrated in Figure 1 are motivated by the use of similar constructions in the field of chemoinformatics. The strategy is to utilise data mining techniques developed in that field to determine characteristic search development patterns, thus building models of the different ways in which the general public conduct their searches and the associated effectiveness of these approaches. Having established a quantitative methodology based on a large sample of typical queries, the research has now progressed into a second phase, in which we are conducting our own empirical studies with volunteer members of the general public to validate and elaborate the models. The data collected in this phase are richer than is provided by transaction logs, since they includes complete screen records supplemented by qualitative data collected through interviews, talk-aloud protocols and questionnaires. Thus, the data provide a full record of all human-computer interactions, including, but not limited to, dialogue with the search engines used. In addition, the qualitative data provides insights into the semantics of and motivation for the search behaviour and its effectiveness. The richer data are being used to develop richer models of the search process, since the qualitative data allows us to also determine the intent behind query transformations and, hence, to derive a taxonomy of semantic query transformations.

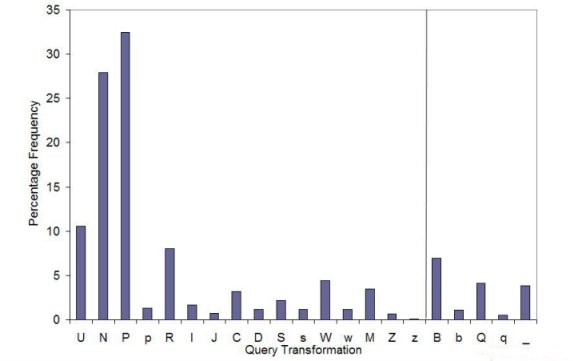

Figure 2 shows the occurrence frequencies of query transformation characters (listed in Table 1 of the Appendix). Each query transformation to the left of the vertical line consists of a main transformation type, which may be modified by one or more of the supplementary characters B, b, Q, q and _.
The main features of Figure 2 can be summarised as follows. Forward page viewing, 'P', which He et al. (2002) have called Browsing, is the most popular activity and occurs more frequently than the submission of new queries, 'N'. Unique queries, 'U', form over 10% of entries and these are followed in popularity by repetition, 'R', which has also been interpreted as relevance feedback requests (Spink et al. 2000). Of the transformations of more significant interest, 'W' indicating a single common word, 'C' indicating the lengthening of a phrase and 'M' an unresolved textual similarity are the most common.
The graphs that we have examined in detail suggest that there is considerable variety in the patterns that may be obtained by these methods. The hope is that further analysis of these will aid the development of search models. At this stage we have examined the overall features of the graphs through their connectivity. Disregarding direction, query 22 in Figure 1 is connected to four other queries, queries 5 and 6 are connected to three, while other nodes are connected to just one or two neighbours. Amongst the 368,513 sub-sessions we found 165,578 that contained two queries or more and constituted viable graphs. By counting the k connections to each node for each sub-session length and accumulating the results in a histogram, we can obtain an average frequency distribution f(k). Figure 3 shows a semi-logarithmic plot of this distribution of connectivity with the preferred parameters QMT = 0.3 and WST = 0.4. Many naturally occurring networks exhibit connectivity with a scale-free, power-law distribution characterised by relatively few highly connected nodes amongst a majority of low connectivity (Barabási and Albert 1999). However, the fitted lines in Figure 3 reveal that exponential scaling is obtained over much of the range following f(k) ~ Aeγk with exponent γ = 1 and where A is a constant. For clarity, we show results for graphs of just two sub-session lengths in the range of interest, but other values have been sampled and show similar behaviour. The implication is that there is no preferential attachment of new queries to nodes that are already well subscribed (Barabási and Albert 1999). A possible influence on this result is the observed preponderance of simply connected page-viewing and repetitive queries. However, as shown in Figure 3, ignoring these trains in the connectivity count makes a significant difference only to values for k = 2 other points being virtually unchanged when viewed on the logarithmic scale.
As we have described, each query transformation code may contain up to four characters describing the transformation. An analysis of the correlations between these characters reveals information about the relationships between the supplementary codes and the primary codes relating to the construction of query transforms; these are the Intra-QT correlations. Following a standard correlation analysis (Hájek & Dupac 1967) we write the occurrence frequencies for these as f(Aj , Ai) for pairs in which a character Aj is coincident (i.e. part of the same query transform) with character Ai. From the occurrence frequencies we evaluate expectation frequencies and an estimated standard deviation for the term correlations under the assumption that the codes appear randomly. We then compare the differences between observed and expected values expressed in multiples of the estimated standard deviation using the quantities Df
Where V is the variance. Compared in this way, large positive differences in these suggest a strong association while negative values indicate that the codes concerned appear together less than expected. On the basis of values returned, values of greater than 50 suggest a strong association whilst values between 5 and 50 are significantly associated. Values between -5 and +5 were considered insignificantly associated and those less than -5 negatively associated. Results are given in Table 2
Table 2 records the values of Df for correlations between codes within the same transformation. Using this measure, many of the results are significantly different from the random expectation.
The primary character, 'J' is, by definition, normally in association with one of the supplementary terms (the erroneous use of a single quotation mark may trigger it without an auxiliary character) and so the high values in row J of Table 2 are expected. The main conclusions that can be drawn from Table 2 can be summarised as follows:
These observations include some that may be expected and some that are not. A similar analysis can be performed on the inter-QT correlations and this will be reported elsewhere.
In this paper we report on the initial phase of research into Web searching behaviour by the general public. By linking queries to the most similar preceding query in a session we have devised a system that will process a search engine log and convert individual sessions into a string of query transformations. Each transformation type is coded by up to four symbols and includes a connection number to the most similar preceding query. These can be converted into a graphical representation of the search process that could potentially reflect an operator's thoughts more accurately than could a simple relationship to the immediately preceding query. We have used this system to analyse the transformations obtained from an Excite search engine log in terms of their relative frequency and co-occurrence. A number of expected correlations have been identified and some that are unexpected. The connectivity of the graphs obtained has been investigated and found to follow an exponential scaling law, suggesting that their evolution does not involve preferential attachment to existing nodes.
The original motivation for developing this analysis was to apply it to our own logs derived from experimental records of searches by volunteers. This is now in progress. The codes can either be applied, as here, to link queries to the most similar previously occurring query, or to the immediately occurring query. Two sets of codes add an extra dimension to the richness of the data. These codes, representing the syntactic changes between queries, are being embedded in a database that includes volunteer background, scores from a cognitive style analysis, scores representing the subjects appraisal of a search, the queries themselves, Webpage titles visited as well as the keystroke record and activity timings. Volunteers are encouraged to talk through their searches and the temporal database will represent a flexible repository of data that can be used in conjunction with audio records of the volunteers' comments in a qualitative analysis.
The database approach has the aim of developing an understanding of the problem domain by elaborating a model that captures its semantics. Further, the inductive nature of this process means that this model will evolve, particularly given the progression from quantitative to qualitative analysis and the consequential progressive increasing in understanding of the semantics of the problem domain. Therefore, the applications for analysing snapshots of the data will benefit from views of the data that are persistent and independent of subsequent changes to the data model, i.e., data independence. Finally, we note that the phenomena that we wish to model, i.e., Web searches, are characterised by time. There is potential, therefore, to utilise the large body of research into temporal databases. In particular, we identify parallels between temporal data modelling requirements encountered in previous research into museum databases (Eaglestone et al. 1996)) and those of the current study, which is also an area of ongoing research into support for inductive research methods.
We thank Mark Sanderson and Amanda Spink for making the Excite logs available to us and the Arts and Humanities Research Council (formerly Board) for funding this project.
|Find other papers on this subject|
|U||A unique query. Only used for a single query session.|
|N||A new query (recognised by being at the start of a session or having low textual similarity to preceding queries) appearing during a session of at least two queries.|
|R||A repeated query with the same page rank - probably seeking relevance feedback.|
|P||A repeated query with increased page rank - further investigation of results from the current query.|
|p||A repeated query with reduced page rank - further investigation of results from the current query by returning to earlier pages.|
|I(k)||Indicates an identical query (including quotation marks and Boolean operators) to the one in the k'th position. This excludes identical queries in the immediately preceding position, which are covered by codes 'R', 'P' and 'p' in Table 1.|
|J(k)||Indicates an identical query apart from quotation marks, and/or Boolean + marks.|
|C(k)||A conjoint modification, which extends query k and retains it as a sub-phrase.|
|D(k)||A disjoint modification, which reduces a query k in which it is contained as a sub-phrase.|
|S(k)||A modified query that has a sub-phrase in common with query k; this sub-phrase is shorter than either query in question. The sub-phrase forms only part of the prior query.|
|s(k)||As S(k) above but in this case the number of words in common is also greater than the word-length of the common sub-phrase: an indication of some re-ordering of words, word insertion or removal.|
|W(k)||A modified query with a single word in common with query k. The single word forms only part of the prior query|
|w(k)||A modified query that has more than one word in common with query k but these are separated in one or both queries. Usually indicates an insertion or word replacement between common words.|
|M(k)||A modified query recognised on the basis of some textual similarity with a previous query above the threshold level. It cannot be further categorised as one of the above and probably contains changed word endings.|
|Z(k)||Queries not recognised as similar but found to have a single word in common with query k. This word is probably short, in comparison with the query length; frequently 'and' 'of' or 'in'.|
|z(k)||Queries not recognised as similar but found to have more than one word (as above, usually short) in common with query k.|
|B||Indicates the inclusion of a Boolean operator (+, AND, OR, NOT).|
|b||Indicates the removal of a Boolean operator.|
|Q||Indicates the inclusion of quote marks.|
|q||Indicates the removal of quotation marks|
|_||Delay term indicating prolonged inactivity prior to a subsequent query.|
The following pseudo code represents the algorithm used to generate the query transformation codes. It is essentially a double loop over the queries that retrieves the most similar pairs and then applies a series of tests on the pairs to establish a code. Details of the similarity methods used will be given elsewhere. These are represented here as TiB, TiQ for the Boolean, and quotation mark modifications, TiP, the primary code and, TiD, the delay code. We assume that n queries have previously been identified in a session. The symbol Qi represents the ith query and Qi* the same query stripped of quotation marks and Boolean symbols. The corresponding page rank value, read from the logs, is represented by Pi. Coding symbols are shown italicised and the codes themselves are shown plain. Other terms are identified in the code or are self-explanatory.
Input: A set of n queries from a single user session.
Output: A set of four query transformation codes TiB, TiQ, TiP ,TiD for each query i.
for i= 1 to n // Label first query transformation
Qi = a query
TiB = f ; TiQ = f ; TiP = f ; TiD = f
// Count and strip out quotation marks and Boolean terms from Q1
Q1 => Q1*
if(NQ(1) > 1) then T1Q = Q
if(NB(1) > 0) then T1B = B
if(n > 1) then T1P = N
if(n == 1) then T1P = U
for i = 2 to n // Loop over remaining queries
// First compare Qi with Qi-1
if (timestamp(i) - timestamp(i-1) = delay limit) then TiD = _
if (Qi== Qi-1) then
if(Pi < Pi-1) then TiP = p // Decreased page rank
if(Pi > Pi-1) then TiP = P // Increased page rank
if(Pi == Pi-1) then TiP = R // Repeat query
else search for most similar previous query
// Count and strip out quotation marks and Boolean terms from Qi
Qi => Qi*
NB(i) = number of Boolean terms in query i
NQ(i) = number of quotation marks in query i
for j = 1 to i-1
Compare Qi* with Qk* and find similarity
Record the most similar Qk* set k = j
Compare Qi* with Qk*:
Obtain smallest word count = Wmin
Count common words = Ncom
Find largest common sub-phrase; word count = MCS
// Comparisons above similarity threshold QST
if (similarity(Qi* , Qk*) >= QST) then
if(Qi == Qk) then TiP = I // Identical queries
elseif( MCS = Wi ) then// Common phrase
if( Wj > Wi ) then TiP = C // Conjoint modification
if( Wj < Wi ) then TiP = D // Disjoint modification
if(Wj = Wi ) then TiP = J// Identical apart from Boolean or quotation marks
if( (MCS = 0) AND (Ncom > 0)) TiP = X // Error - should not happen
if(MCS = 1) then
If (Ncom > MCS) then TiP = w // Single words in common
If(Ncom = MCS) then TiP = W // Single common word
if(MCS != 1) then
if ( (MCS !=> 0) AND (MCS < Wmin)) then // MCS shorter than shortest query
if (Ncom > MCS) then TiP = s // Common sub-phrase with re-ordering
if (Ncom = MCS) then TiP = S // Common sub-phrase
if ( (MCS = 0) AND (Ncom = 0)) then TiP = M // Similar queries but no common words or phrase
// Comparisons below similarity threshold QST
if( (similarity(Qi, Qk) < QST) AND (MCS > 0 ) ) then
if (Ncom = 1) then TiP = Z // One similar word
if (Ncom >1) then TiP = z // More than one similar word
// End loop over i
Input: Quote mark and Boolean term count for queries i and k.
Output: Query transformation codes TiB ,TiQ for queryi.
if(NQ(i) - NQ(k) 1) then TiQ = Q // Assign quotation mark codes
if(NQ(i) - NQ(k) < -1) then T iQ = q
if(NB(i) - NB(k) > 0) then T iB = B // Assign Boolean codes
if(NB(i) - NB(k) < 0) then TiB = b
